SA B-FN 60 LED Strip 12V 4000K IP20 (14.4W/M, 5Metre/Roll) Original price was: $22.29.Current price is: $20.89. Excl. GST
Back to products
SA NDR1112 Vertical LED Neon Flex 24V Pure White 6000K IP67 (12W/M) $85.56 – $170.69 Excl. GST
Sale
14.4W
12V
4000K
Click to enlarge

Alternative Products

15W
24V
4000K
Compare
Quick view
ITEM CODE: WL 94UB2-A

WL COB Diffuse LED Strip 24V 4000K IP67 (15W/M, 5Metre/Roll)

64 in stock

1 - 9 $48.00
10 + $45.00
Original price was: $64.03.Current price is: $48.00. Excl. GST
Add to cart
Weight 0.6 g
Dimensions 5000 × 12 × 6.5 mm
POWER

15W
VOLTAGE

DC 24V
CURRENT(A)

0.625A
LUMINOUS FLUX

625lm
EFFICIENCY

41.68lm/W
CCT(K)

4000K
CRI

80
IP RATING

IP 67
CUTTABLE

45.45mm
NUMBER OF LED

528 EA/M (2,640LEDs)
MAX IN SERIES

5 Metre
WIDTH

12mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR
15W
24V
4000K
Compare
Quick view
ITEM CODE: SA 99SB2-A

SA W-COB WT 528 LED Strip 24V 4000K IP67 (15W/M, 5Metre/Roll)

24 in stock

1 - 9 $37.17
10 + $34.85
Original price was: $58.83.Current price is: $37.17. Excl. GST
Add to cart
Weight 0.9 g
Dimensions 5000 × 12.5 × 5 mm
POWER

15W
VOLTAGE

DC 24V
CURRENT(A)

0.625A
LUMINOUS FLUX

1,575lm
EFFICIENCY

105lm/W
CCT(K)

4000K
CRI

80
VIEWING ANGLE

180°
IP RATING

IP 67
NUMBER OF LED

528 EA/M (2,640LEDs)
CUTTABLE

45.45mm
MAX IN SERIES

5 Metre
WIDTH

12.5mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ 40 °C
STORAGE TEMPERATURE

-20 ℃ ~ 45 ℃
WARRANTY

5 YEAR
OUT OF STOCK
14.4W
12V
3000K
Compare
Quick view
ITEM CODE: SA 74342

SA B-FWS 120 LED Strip 12V 3000K IP65 (14.4W/M, 5Metre/Roll)

Please purchase SA 74312 alternatively.

1 - 9 $36.70
10 + $34.54
Original price was: $39.14.Current price is: $36.70. Excl. GST
Read more
Weight 0.227 g
Dimensions 5000 × 8 × 2.5 mm
POWER

14.4W
VOLTAGE

DC 12V
CURRENT(A)

1.2A
LUMINOUS FLUX

1512 lm
EFFICIENCY

105lm/W
CCT(K)

3000K
CRI

90
VIEWING ANGLE

120º STANDARD
IP RATING

IP 65
CUTTABLE

EVERY 3 LED / 25mm
NUMBER OF LED

120 EA/M (600 LEDs)
MAX IN SERIES

5 Metre
WIDTH

10mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ +60 °C
STORAGE TEMPERATURE

-30 °C ~ 70 °C
WARRANTY

5 YEAR

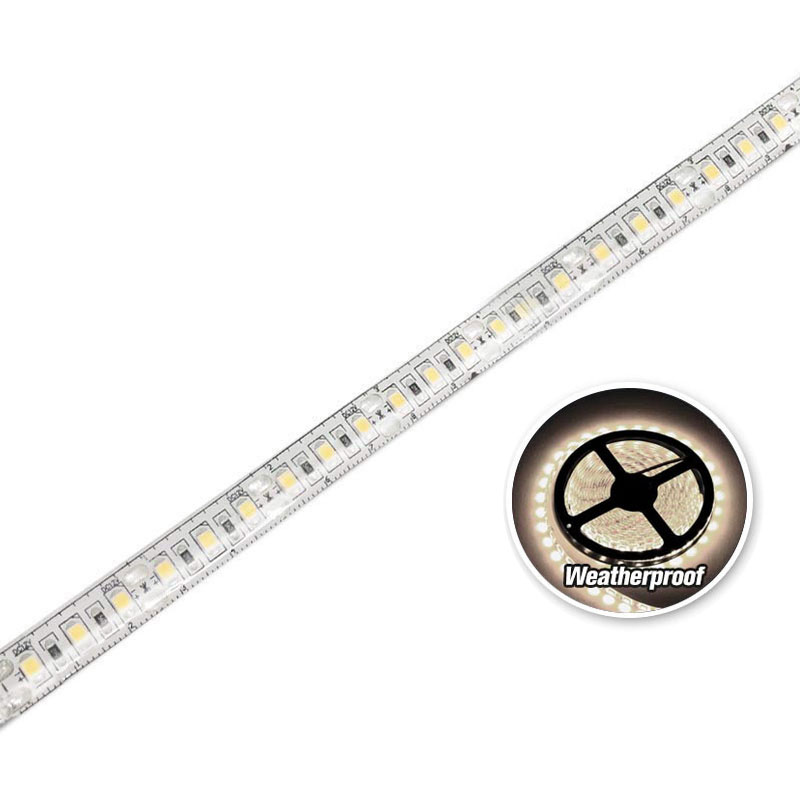

SA B-FWS 120 LED Strip 12V 4000K IP65 (14.4W/M, 5Metre/Roll)

ITEM CODE: SA 74342-A

Original price was: $39.14.Current price is: $36.70. Excl. GST

27 in stock

1 - 9 $36.70
10 + $34.54
Find suitable power supplier ? (click)
Need to buy accessories as well ? (click)
Add to wishlist
Compare

DOWNLOADS

Check out the latest product specifications and guides.

Product Specification

Installation Guide

IES File

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

LED WIRE 22AWG 2C NUDE (50M/Roll)
Compare
Quick view
ITEM CODE: SA 9171

LED Wire 22AWG 2C Nude (50M/Roll)

271 in stock

Original price was: $42.62.Current price is: $35.52. Excl. GST
Add to cart
Weight 0.7 g
Dimensions 165 × 165 × 46 mm
STANDARD

22 AWG
NUMBER OF CONDUCTOR

2
LENGTH

50 Metre
NO & DIA CONDUCTOR

17 / 0.16mm
INSULATION DIA(mm)

1.62 ± 0.05mm
LED WIRE UL 18AWG RED WHITE(50M/Roll)
Compare
Quick view
ITEM CODE: SA 917

LED Wire UL 22 AWG Red & White (50M/Roll)

98 in stock

Original price was: $41.62.Current price is: $34.68. Excl. GST
Add to cart
Weight 1.217 g
Dimensions 163 × 163 × 45 mm
STANDARD

22 AWG
LENGTH

50 Metre
NUMBER OF CONDUCTOR

2
NO & DIA CONDUCTOR

41 / 0.16 mm
INSULATION DIA(mm)

1.62 ± 0.05mm
OUT OF STOCK
2 WAGO Connectors 1 Box (50 connectors)
Compare
Quick view
ITEM CODE: SA 926

2 WAGO Connectors 1 Box (100 connectors)

Please purchase SA 926-J alternatively.

Box -100 Connectors $0.31 / each
$30.81 Excl. GST
Read more
Weight 141 g
Dimensions 110 × 85 × 41 mm
BRAND

Wago
NUMBER OF WAYS

2
TERMINATION METHOD

SPRING CAGE
MAX. TEMPERATURE

105 Degree
WIRE RANGE

AWG 24-12

Key Features & Benefits

  • Item Code: SA 74342-A
  • Fast and easy installation
  • Dimmer and DALI Compatibility
  • LED Type: 2835T LED Chip
  • LED Strip Width: 10mm Width
  • The highest quality genuine 3M adhesive tape backing
  • Weatherproof type(IP65)
  • 5 Years Warranty
Additional information
Weight 0.227 g
Dimensions 5000 × 8 × 2.5 mm
POWER

14.4W
VOLTAGE

DC 12V
CURRENT(A)

1.2A
LUMINOUS FLUX

1512 lm
EFFICIENCY

105lm/W
CCT(K)

4000K
CRI

90
VIEWING ANGLE

120º STANDARD
IP RATING

IP 67
CUTTABLE

EVERY 3 LED / 25mm
NUMBER OF LED

120 EA/M (600 LEDs)
MAX IN SERIES

5 Metre
WIDTH

10mm
LENGTH

5M
WORKING TEMPERATURE

-20 °C ~ +60 °C
STORAGE TEMPERATURE

-30 °C ~ 70 °C
WARRANTY

5 YEAR

Description

MAX IN SERIES

5 Metre

*Up to 5 Metre in a single series

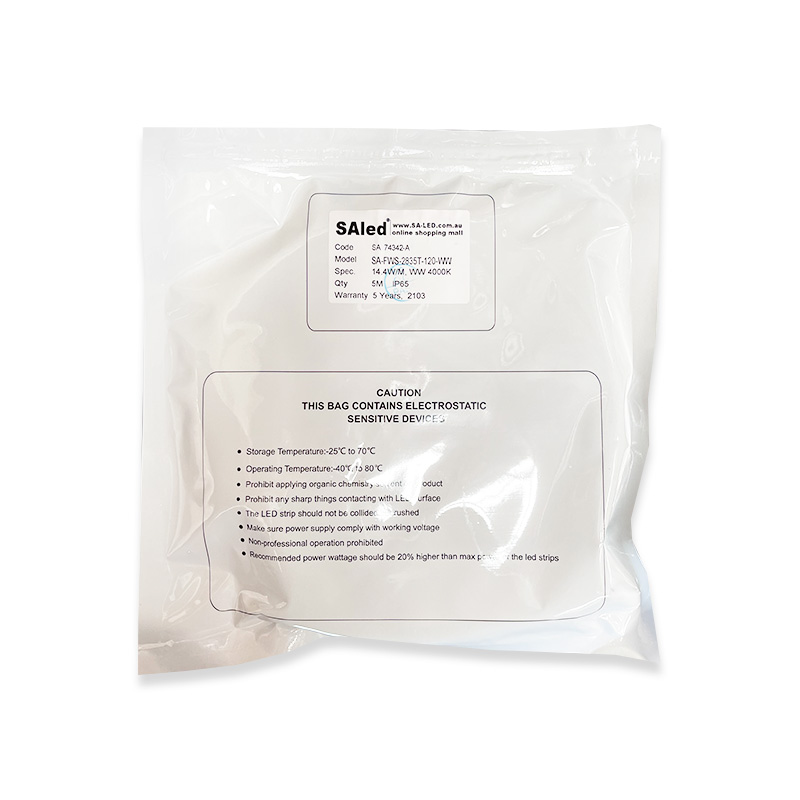

PACKING SPECIFICATION

BAG

CARTON

Pack

5Metre/bag

–

Dimension(L x W x h)

180x160x20mm

–

Weight(g)

500g

–
