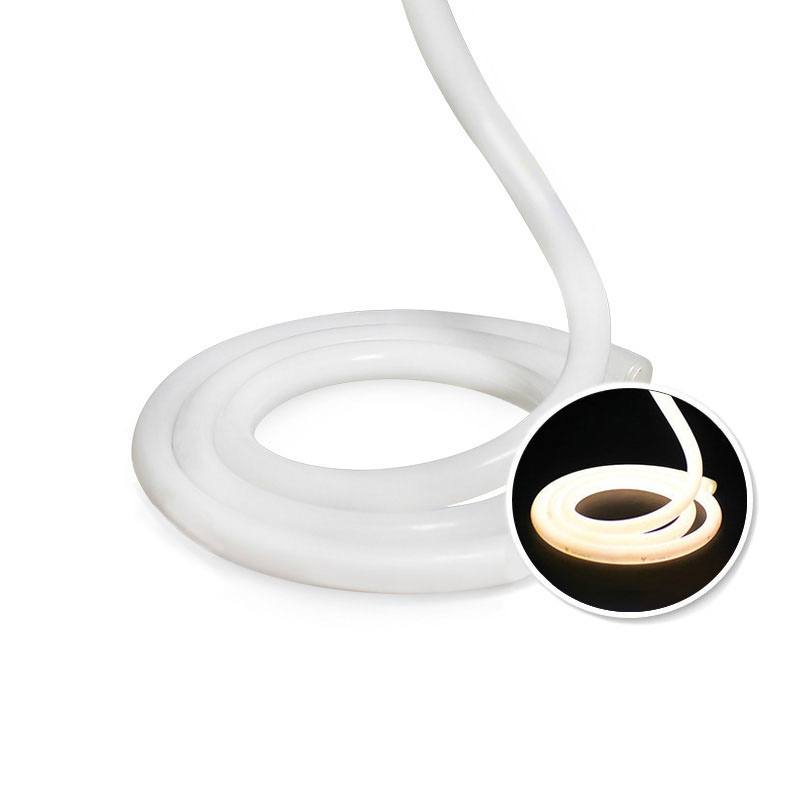

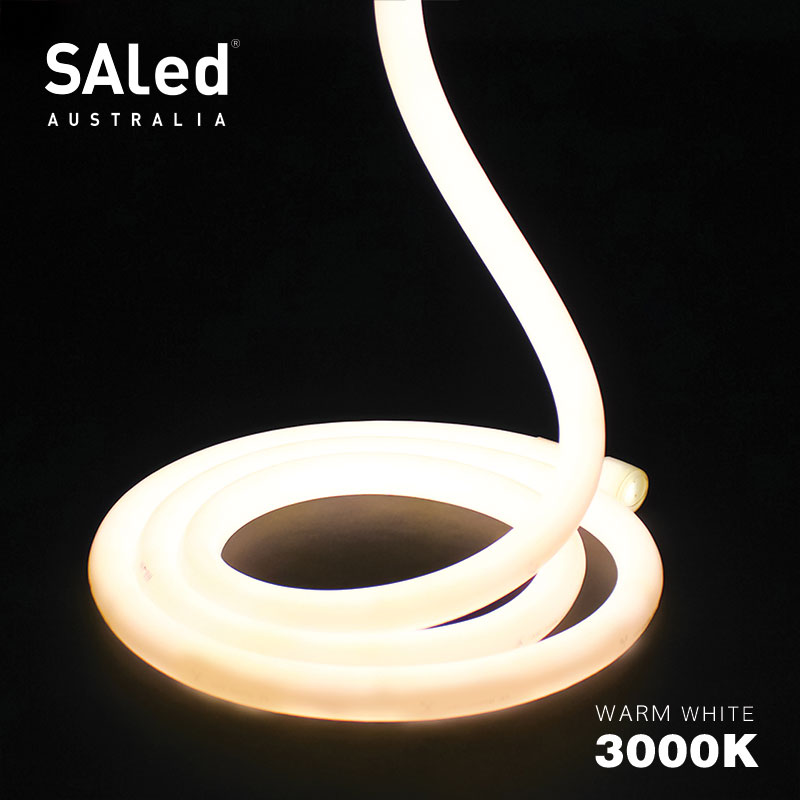

SA NCR19 360° NEON FLEX 16W 24V 3000K (10 Metre / Unit)

ITEM CODE: SA 1BJ

$298.97 Excl. GST

Out of stock

DOWNLOADS

Power Calculator

Power Calculator

Easy to estimate your power supply needs.

Our power calculator helps you determine the power supply needed for your LED light projects.

*Simply answer the questions below, and you'll receive a quick recommendation.

Enter the required number of the LEDs or Metre

METRE

Where will the power supplies be installed?

e.g) Strip or Neon Flex : 8 Metres

Must Have Items (Accessories)

ITEM CODE: SA 95A2

SA NCR19 360° End Cap Without Hole (5 PACK)

25 in stock

$0.48 Excl. GST
Add to cart
Weight 0.06 g
Dimensions 19 × 19 mm
ITEM CODE: SA 95A1

SA NCR19 360° End Cap With Hole (5 PACK)

25 in stock

$0.48 Excl. GST
Add to cart
Weight 0.06 g
Dimensions 17 × 19 × 19 mm
ITEM CODE: SA 95A3

SA NCR19 360° Plastic Clip (4 PACK)

159 in stock

$0.54 Excl. GST
Add to cart
Weight 0.06 g
Dimensions 17 × 19 × 19 mm
ITEM CODE: SA 95A4

SA NCR19 360° Pendant Kit

64 in stock

$1.06 Excl. GST
Add to cart
Weight 0.2 g
ITEM CODE: SA 95A5

SA LED Neon flex Silicone Glue_45ml

115 in stock

$6.07 Excl. GST
Add to cart
Weight 0.5 g
Dimensions 130 × 25 mm
ITEM CODE: SA 95A6

SA NCR19 360° White Jacket Cable

45 in stock

$0.29 Excl. GST
Add to cart
Weight 0.5 g
Dimensions 30 mm

Key Features & Benefits

  • Item Code: SA 1BJ
  • Beam angle 360°uniform light emission in all directions.
  • Excellent flexibility for proper bending while easy to be modelling
  • 24V DC low voltage, safe and reliable
  • IP65 rated
  • No Cutting mark (Do not Cut)
  • We strongly recommend both ends power inputs at all length
  • DALI Compatible
  • 5years Warranty
Additional information
Weight 470 g
Dimensions 10000 × 19 × 19 mm
POWER

16W

VOLTAGE

DC 24V

CURRENT(A)

0.67A

LUMINOUS FLUX

1267lm

EFFICIENCY

79lm/W

CCT(K)

3000K

VIEWING ANGLE

360°

IP RATING

IP 65

DIMMABLE

DIMMABLE

LENGTH

10M

WARRANTY

5 YEAR

Description



Special Note

ROLL LENGTHS_Any claim for short supply will only be considered while
the NEON FLEX is in one length, to prove any manufacturing discrepancy.

Troubleshooting Common Faults

Problems Reasons Solutions
No illumination No electricity supply Ensure LED driver is working
Automatic power protection from the open or short circuit in output of the power supply Fix the short circuit problem
Wrong connection of power supply
Partial illumination Using a switching mode power supply Make it as follows: Don’t use switching mode power supplies
Wire connection mistake Check connections
Brightness of LED is inconsistent for inconsistent Power overloaded Replace with a power supply that delivers 125% of current required to power the product
Voltage drop due to exceeding max-in-series limit Adhere to the max-in-series limit specified on the product page
LED Flickering Connection point fault Fix bad connection point
Use a proper LED driver Replace a new power supply

Important Note

Installation Precautions

1. All installation and connection must be conducted by a qualified electrician.

2. A 24V DC class 2 power supply unit must be used with this LED NEON FLEX.

3. Disconnect the mains’ power before installing or servicing to avoid electrocution.

4. For a wet location installation you must seal all possible water entry points including covers with clear silicone.

Dimensions(mm)

LED CASES
